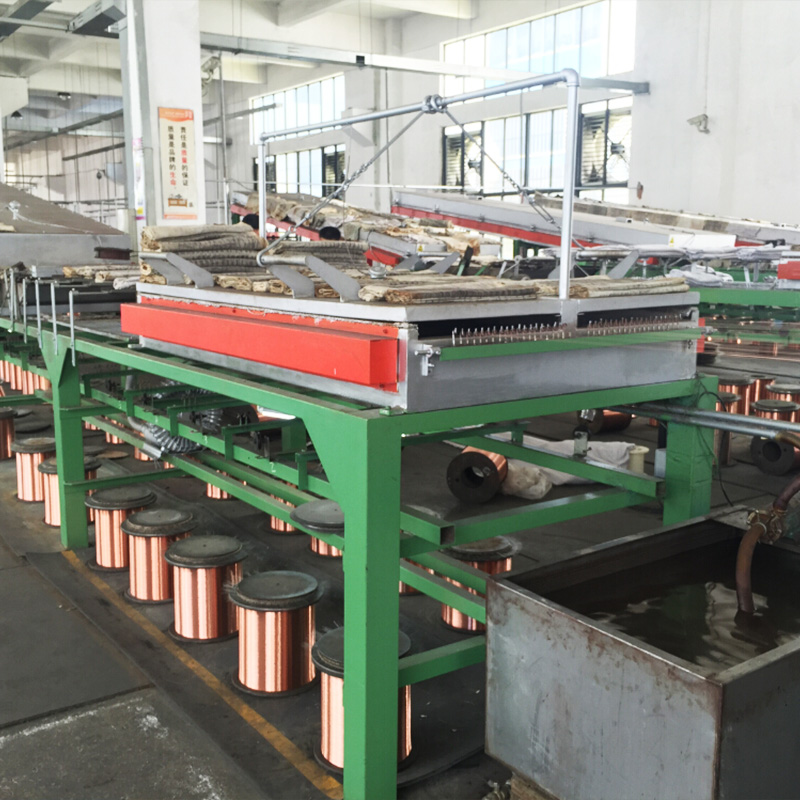

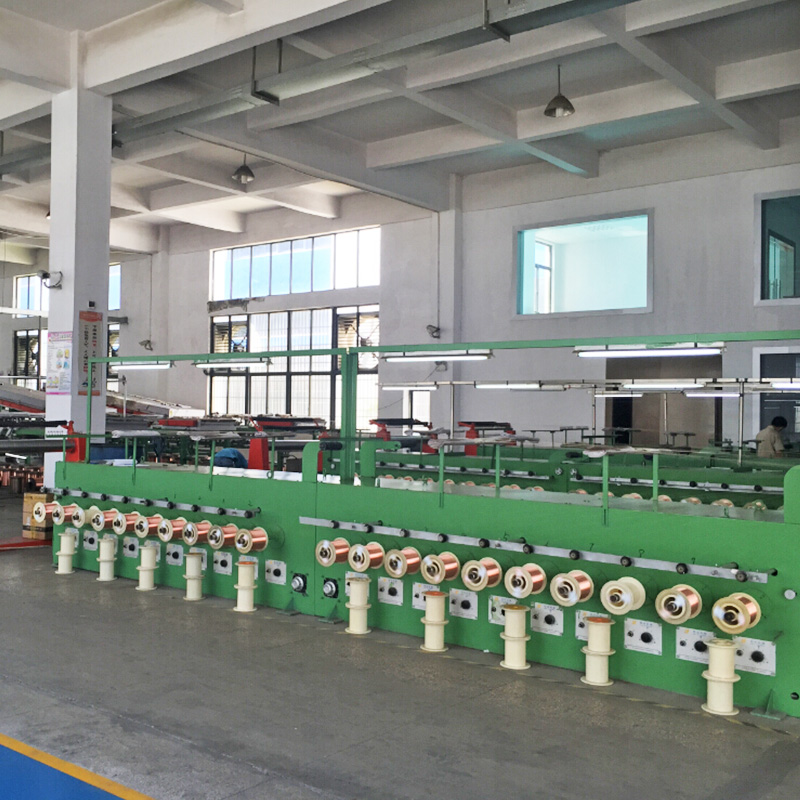

Copper Clad Steel Series Conduit Annealing Machine
  • Copper Clad Steel Series Conduit Annealing Machine
  • Copper Clad Steel Series Conduit Annealing Machine
  • Copper Clad Steel Series Conduit Annealing Machine

Copper Clad Steel Series Conduit Annealing Machine

+86-15006209216 Contact Us
A copper-clad steel series conduit annealing machine is specialized equipment used to anneal copper-clad steel conduits or pipes. Copper-clad steel conduits are typically used in various industries, including telecommunications, electrical wiring, and plumbing, where the combination of copper's conductivity and steel's strength is advantageous. The annealing process for copper-clad steel conduits involves heating the conduit to a specific temperature and then carefully controlling the cooling process. This helps to modify the internal structure of the material, making it more ductile and easier to work with while retaining the desired strength characteristics.
PREV：No previous product
NEXT：No next product
  • Description
  • Machine type HXE-40HG HXE-32HG HXE-24HG HXE-4OHL HXE-32HL HXE-24HL
    Number of wire 40 32 24 40 32 24
    Wire diameter Φ0.10-Φ0.4mm Φ0.1-Φ0.4mm Φ0.1-Φ0.4mm Φ0.10-Φ0.4mm Φ0.1-Φ0.4mm Φ0.1-Φ0.4mm
    Max. line speed (mpm) 180mpm 180mpm 180mpm 250mpm 250mpm 250mpm
    Pay-off method Hairbrush pay off
    Annealing method Tubular annealing
    Take up method single tray torque motor
    Annealing length 9 9 9 5 5 5
    Spooler dimension PT5-PT25(can be customized as request)
    Leading method Single or double leading (can be customized as request)
    Installed thermal power 70 70 70 42 42 42
    Installed dynamic power 12 10 9 12 10 9
    Total installed power 82 80 79 54 52 51
    Traversing control Decelerate motor loading &unloading unaided traversing
    Dimension 22000*2200*1600 21000*2200*1600 20000*1600*1600 17500*2200*1600 16500*2200*1600 15500*1600*1600
    Weight 4500 4000 3800 3500 3200 3000

Related Products

Suzhou Hengxie Machinery Co., Ltd.

We are an enterprise specializing in the research, development, production and sales of cable equipment series products.

Suzhou Hengxie is China Copper Clad Steel Series Conduit Annealing Machine Manufacturers. Our main products of company are as following: 9, 13 dies rod breakdown machine and 17 dies medium drawing machine (chain or ground gear transmission type), medium and large drawing machine with continuous annealer, 14 dies medium and fine wire drawing machine, 22 or 24 dies fine wire drawing machine, 20 or 24 dies super fine wire drawing machine, annealing and tinning machine, medium wire drawing machine with double spooler, and hing speed auto stranding machine, etc.Our products include both domestic market and oversea market such as India, Brazil,Egypt, Malaysia, Korea, Vietnam, Syria, Kenya, Argentina, South Africa and Iran. With the concept of stable quality and mutual development, Hengxie welcomes all customers from the world to create a sincere cooperation and win-win benefit in the future.

Do You Have Any Question?

If you have any questions, please do not hesitate to contact us!

Suzhou Hengxie Machinery Co., Ltd.
News & Events
Read More

Excellent product with exquisite craftsmanship

  • Factory
    Company real picture
  • Factory
    Workshop
  • Factory
    Workshop
  • Factory
    Workshop
  • Factory
    Factory equipment
  • Factory
    Factory equipment
  • Factory
    Factory equipment

Industry knowledge

What are the Key Features and Advantages of the Copper Clad Steel Series Conduit Annealing Machine for Wire Manufacturing?
The Copper Clad Steel Series Conduit Annealing Machine stands as a pivotal solution for twine manufacturing, presenting quite a range of specialized capabilities and blessings that extensively affect manufacturing performance, extraordinary, and flexibility. Here are the critical element additives that set this gadget apart within the company:
1. Wire Diameter Versatility:
The gadget accommodates diverse twine diameters in the range of Φ0.10-Φ0.4mm. This versatility guarantees it could deal with one-of-a-type wire sizes, supplying producers flexibility in production without the want for regular retooling or adjustment.
2. Variable Speed Capabilities:
With a maximum line velocity of 180mpm for a few fashions and 250mpm for others, this machine presents the strength to cater to tremendous manufacturing requirements. The capability to modify velocity permits manufacturers to optimize manufacturing primarily based on precise desires and materials, enhancing performance.
3. Pay-Off Method:
Utilizing a hairbrush pay-off device, the device ensures an easy and regular feeding of the wire. This method prevents tangling or snags throughout the feeding gadget, contributing to a non-forestall and reliable production drift.
4. Tubular Annealing Process:
Employing a tubular annealing method, the system ensures uniform warmness treatment at some point of the wires. This important machine softens the material, improving its ductility and conductivity, crucial for various applications.
5. Take-Up Method and Annealing Length:
The unmarried tray torque motor take-up approach and annealing length specifications (nine or five, depending on the version) ensure precise and controlled winding, contributing to the high quality of the very last product. The flexibility to personalize spooler dimensions and foremost strategies further provides adaptability to fulfill particular production wishes.
6. Customization Options:
The machine offers customization alternatives for spooler dimensions and important strategies, catering to various production necessities. This adaptability allows manufacturers to tailor the device to shape their precise production techniques.
Advantages:
Enhanced Efficiency:
The device's functionality to handle numerous cord diameters, coupled with adjustable line speeds, appreciably contributes to normal production performance. Manufacturers can meet various needs without compromising on great or throughput.
Improved Quality and Consistency:
The tubular annealing approach ensures regular warmth remedy throughout wires, resulting in stepped-forward material and uniformity. This consequences in better-first-rate cease products, meeting employer requirements and consumer expectancies.
Flexibility and Adaptability:
Customization alternatives for spooler dimensions and main methods offer adaptability, allowing producers to tailor the device to healthy their specific manufacturing necessities.
Reliability and Reduced Downtime:
The hairbrush pay-off approach and unmarried tray torque motor take-up method contribute to a reliable and easy wire feeding and winding technique, reducing the opportunities for interruptions and downtime.
In conclusion, the Copper Clad Steel Series Conduit Annealing Machine stands as a precious asset in twine production, imparting a combination of versatility, extremely good, and customization alternatives, allowing manufacturers to beautify their production techniques and meet organization needs successfully.
